More range, Less impact, EV perfected.

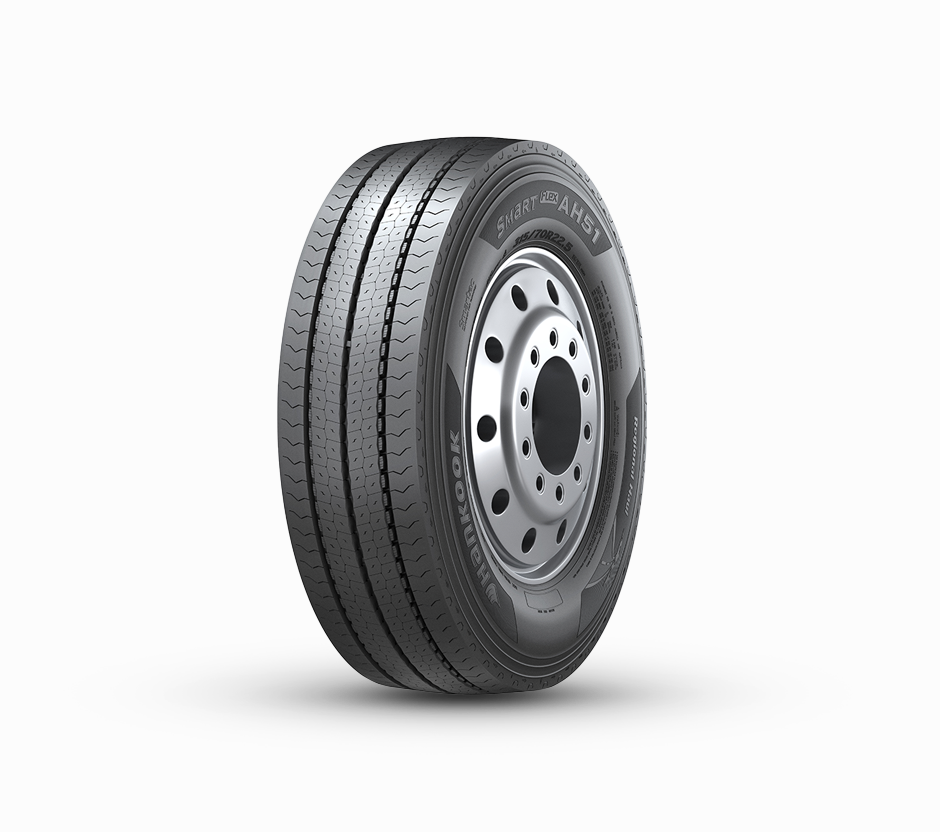

Smart Flex AH51
Steering axle tire delivering premium performance in all regional haul conditions during the whole tire life
M+S
3PMSF
Application
-
Regional Haul
Tractor/Trailer
Recommended
/tt/steer(all)-tractor-trailer-1.svg){kind=icon}
/tt/steer(all)-tractor-trailer-2.svg){kind=icon}
/tt/steer(all)-tractor-trailer-3.svg){kind=icon}
Getting better CPK, Reducing fuel consumption, Securing your safety
Getting better CPK
Minimised cost per kilometre 10% less than predecessor
_415.jpg)
Mileage performance
.jpg)
CPX Index table
Pattern Design
Tread Wear Equalised Stepper (T.W.E.S.)
Small step-shaped blocks provide even wearing and prevent stone trapping, resulting in a long tire life.
.jpg)
3-Dimensional Sipe
Deliver excellent mileage and traction performance with reduced irregular wear which enhances fuel efficiency.
.jpg)
.jpg)
.jpg)
Pattern Design

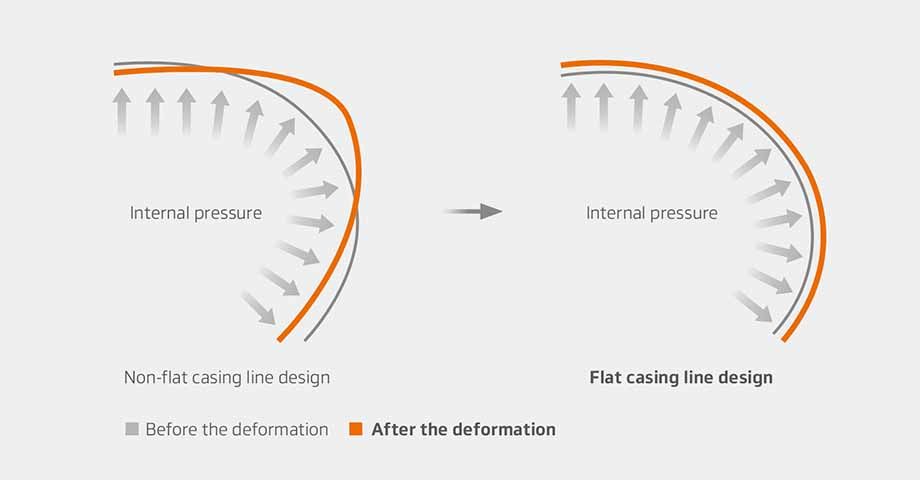

Stiffness Control Contour Theory (SCCT Technology)
_4.jpg)
.jpg)
SCCT Technology is designed to reduce profile deformation. If the carcass profile is not kept constant, the internal force on the carcass will be concentrated on a specific point (belt edge or carcass turn up edge). In contrast, SCCT technology controls the dispersion of internal force for better durability.
Reducing fuel consumption
.jpg)
Rolling Resistance performance
.jpg)
Innovative Mixing System (IMS)
Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
.jpg)
Optimised block size
Wide tread blocks enhance the tire's rigidity and improve the mileage while delivering a low rolling resistance.
.jpg)
Securing your safety
Wet braking performance
Shorter braking distance.
.jpg)
Hidden groove
These hidden grooves appear as the tire wears. This creates new water channels and gripping surfaces, giving better wet grip traction.
.jpg)
.jpg)
Shorter braking distances and safer driving (Comparision with Worn Tire)
Hankook premium technologies deliver excellent grip and safety in all road conditions from the first to last mm of tread.
.jpg)
.jpg)
Hankook
SmartLife
.jpg)
.jpg)
Hankook premium tires are manufactured with robust carcass design and additional regroove tread rubber to deliver a second regrooved tire life and a third retread life.
Gallery
-
Spec
- 22.5”
-
275/70R22.5
- Fuel Efficiency C
- Wet Grip C
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 8.25X22.5
- Load Index 148/145M
- Section Width(mm) 275
- Tread Width(mm) 232
- Tread Depth(mm) 14.5
- Static Loaded Radius(mm) 447
- Overall Diameter(mm) 962
- M+S Y
- 3PMSF Y
- Origin Korea
-
275/70R22.5
- Fuel Efficiency C
- Wet Grip C
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 8.25X22.5
- Load Index 148/145M
- Section Width(mm) 275
- Tread Width(mm) 232
- Tread Depth(mm) 14.5
- Static Loaded Radius(mm) 447
- Overall Diameter(mm) 962
- M+S Y
- 3PMSF Y
- Origin China
-
295/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 9.00X22.5
- Load Index 154/149M
- Section Width(mm) 306
- Tread Width(mm) 246
- Tread Depth(mm) 14.9
- Static Loaded Radius(mm) 490
- Overall Diameter(mm) 1052
- M+S Y
- 3PMSF Y
- Origin Korea
-
295/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 9.00X22.5
- Load Index 154/149M
- Section Width(mm) 306
- Tread Width(mm) 246
- Tread Depth(mm) 14.9
- Overall Diameter(mm) 1052
- M+S Y
- 3PMSF Y
- Origin China
-
315/60R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.75X22.5
- Load Index 154/148L
- Section Width(mm) 320
- Tread Width(mm) 280
- Tread Depth(mm) 12.0
- Static Loaded Radius(mm) 439
- Overall Diameter(mm) 949
- M+S Y
- 3PMSF Y
- Origin Korea
-
315/60R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.75X22.5
- Load Index 154/148L
- Section Width(mm) 320
- Tread Width(mm) 280
- Tread Depth(mm) 12.0
- Static Loaded Radius(mm) 439
- Overall Diameter(mm) 949
- M+S Y
- 3PMSF Y
- Origin China
-
315/70R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.0X22.5
- Load Index 156/150L
- Section Width(mm) 314
- Tread Width(mm) 270
- Tread Depth(mm) 15.0
- Static Loaded Radius(mm) 468
- Overall Diameter(mm) 1012
- M+S Y
- 3PMSF Y
- Origin Korea
-
315/70R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.00X22.5
- Load Index 156/150L
- Section Width(mm) 314
- Tread Width(mm) 270
- Tread Depth(mm) 15.0
- Overall Diameter(mm) 1012
- M+S Y
- 3PMSF Y
- Origin China
-
315/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.0×22.5
- Load Index 156/150L
- Section Width(mm) 320
- Tread Width(mm) 260
- Tread Depth(mm) 16.5
- Static Loaded Radius(mm) 501
- Overall Diameter(mm) 1081.0
- M+S Y
- 3PMSF Y
- Origin Korea
-
315/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 72
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.00X22.5
- Load Index 156/150L
- Section Width(mm) 320
- Tread Width(mm) 260
- Tread Depth(mm) 16.5
- Overall Diameter(mm) 1081
- M+S Y
- 3PMSF Y
- Origin China
-
355/50R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 11.75X22.5
- Load Index 156K
- Section Width(mm) 355
- Tread Width(mm) 306
- Tread Depth(mm) 13.0
- Static Loaded Radius(mm) 436
- Overall Diameter(mm) 935
- M+S Y
- 3PMSF Y
- Origin Korea
-
355/50R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 18
- Measuring Rim 11.75X22.5
- Load Index 156K
- Section Width(mm) 355
- Tread Width(mm) 306
- Tread Depth(mm) 13.0
- Static Loaded Radius(mm) 436
- Overall Diameter(mm) 935
- M+S Y
- 3PMSF Y
- Origin China
-
385/55R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 11.75X22.5
- Load Index 160K
- Section Width(mm) 385
- Tread Width(mm) 324
- Tread Depth(mm) 13.9
- Static Loaded Radius(mm) 461
- Overall Diameter(mm) 1000
- M+S Y
- 3PMSF Y
- Origin Korea
-
385/55R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 12.25X22.5
- Load Index 160K
- Section Width(mm) 385
- Tread Width(mm) 324
- Tread Depth(mm) 13.9
- Static Loaded Radius(mm) 461
- Overall Diameter(mm) 1000
- M+S Y
- 3PMSF Y
- Origin China
-
385/65R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 11.75X22.5
- Load Index 160K
- Section Width(mm) 379
- Tread Width(mm) 308
- Tread Depth(mm) 14.0
- Static Loaded Radius(mm) 498
- Overall Diameter(mm) 1071
- M+S Y
- 3PMSF Y
- Origin Korea
-
385/65R22.5
- Fuel Efficiency B
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 11.75X22.5
- Load Index 160K
- Section Width(mm) 381
- Tread Width(mm) 308
- Tread Depth(mm) 14.0
- Static Loaded Radius(mm) 498
- Overall Diameter(mm) 1071
- M+S Y
- 3PMSF Y
- Origin China
