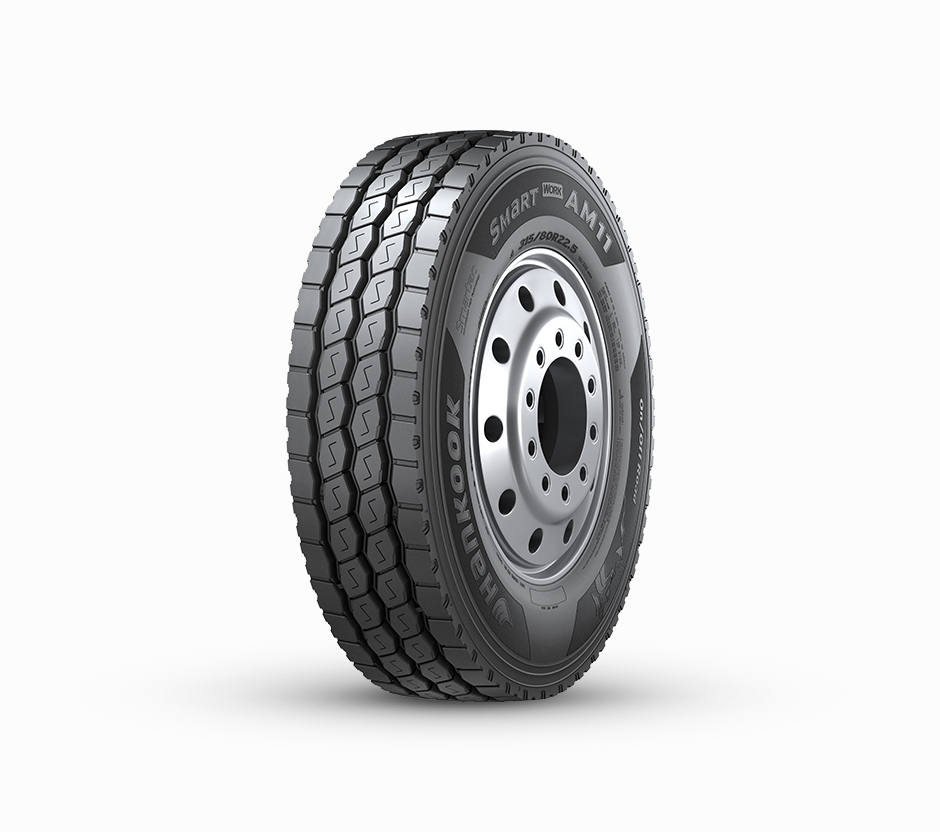

Smart Work AM11
All-position tire for travelling on and off-road with enhanced regional durability
M+S
3PMSF
Application
-
On & Off Road
Dump
Recommended
Available
/dp/steer(all)-dump-1.svg){kind=icon}
/dp/steer(all)-dump-2.svg){kind=icon}
/dp/steer(all)-dump-3.svg){kind=icon}
Durability and RR enhancement, excellent traction,
wet grip, braking performance and reduced stone drilling
.jpg)
Durability and RR enhancement
Special compound for mild on and off conditions
High structure carbon black compound
Improved heat generation is achieved by applying high structure carbon black compound which increases fuel efficiency and durability
-
.jpg)
Conventional
-
.jpg)
SmartWork AM11
Solid center block and wider shoulder ribs
Solid center block and wider should ribs offer improved tread stiffness, leading to an increased mileage and rolling resistance.
-
.jpg)
Conventional
-
.jpg)
SmartWork AM11
.jpg)
Durability and RR enhancement
Special compound for mild on and off conditions
Reduced stone drilling
Stone ejector
Stone ejectors ensure grooves are kept clear at all times by using an additional rubber material to force unwanted debris out.
-
.jpg)
Conventional
-
.jpg)
SmartWork AM11
.jpg)
.jpg)
Reduced stone drilling
.jpg)
Excellent traction, wet grip and braking performance
Zig-Zag traction grooves and optimized multi-angular sipes
Improved traction and braking performance through expansion of 3 zigzag grooves. The unique sipe design prevents chipping and cutting.
-
.jpg)
Zigzag traction groove
-
.jpg)
Multi-angular sipes
Tapered block and step edge groove
Improved braking performance through maximising the edge effect.
-
.jpg)
Tapered block
-
.jpg)
Step edge groove
Semi open shoulder rib
For excellent traction and wet grip.
.jpg)
-
Key Performance
_8.jpg)
-
Spec
- 22.5”
-
315/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 73
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.0X22.5
- Load Index 156/150K
- Section Width(mm) 310
- Tread Width(mm) 264
- Tread Depth(mm) 16.3
- Static Loaded Radius(mm) 492
- Overall Diameter(mm) 1067
- M+S Y
- 3PMSF Y
- Origin Korea
-
315/80R22.5
- Fuel Efficiency C
- Wet Grip B
- External Rolling Noise 73
- Tube Type / Tubeless L
- Ply Rating 20
- Measuring Rim 9.00X22.5
- Load Index 156/150K
- Section Width(mm) 310
- Tread Width(mm) 264
- Tread Depth(mm) 16.3
- Static Loaded Radius(mm) 492
- Overall Diameter(mm) 1067
- M+S Y
- 3PMSF Y
- Origin China
