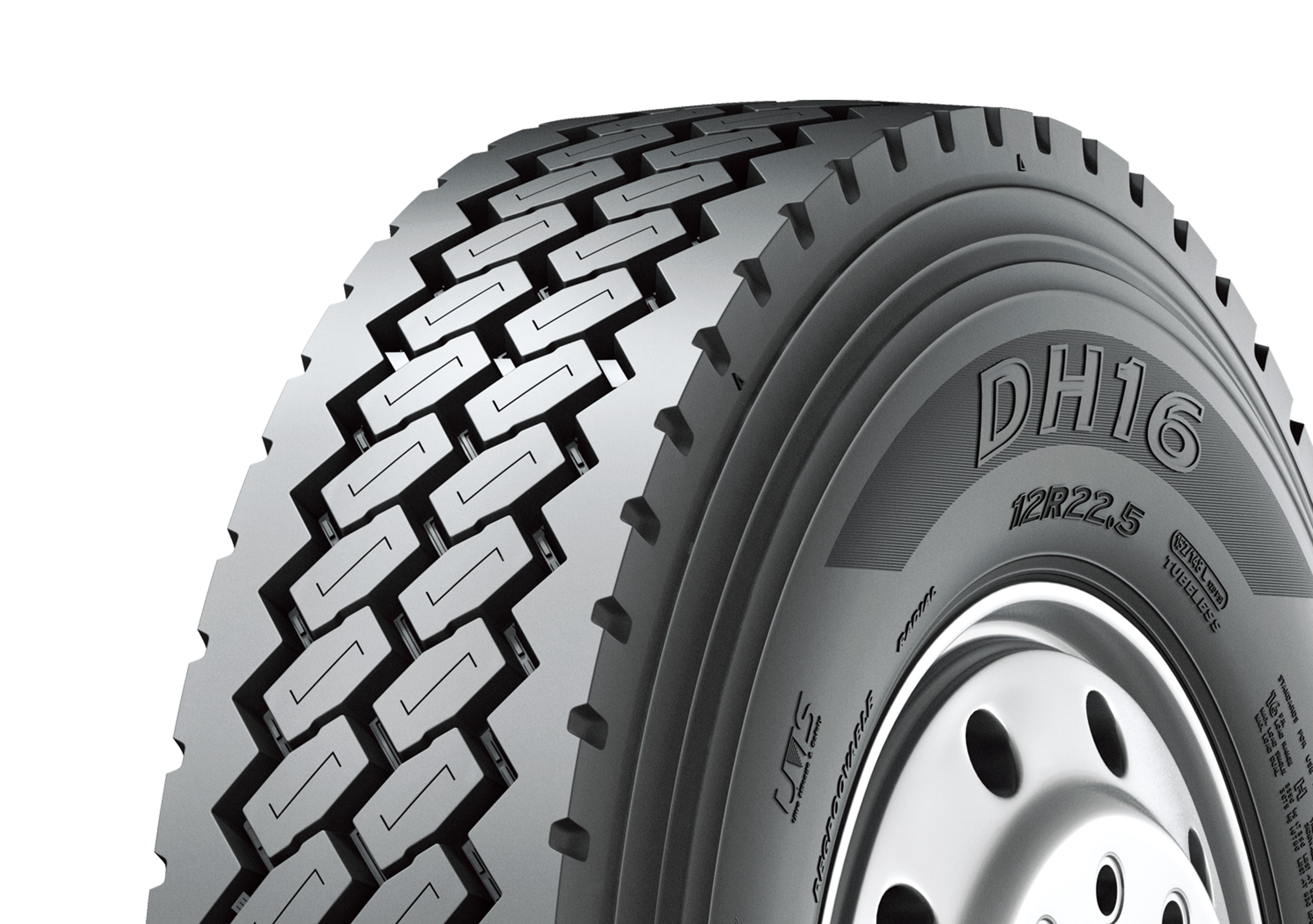

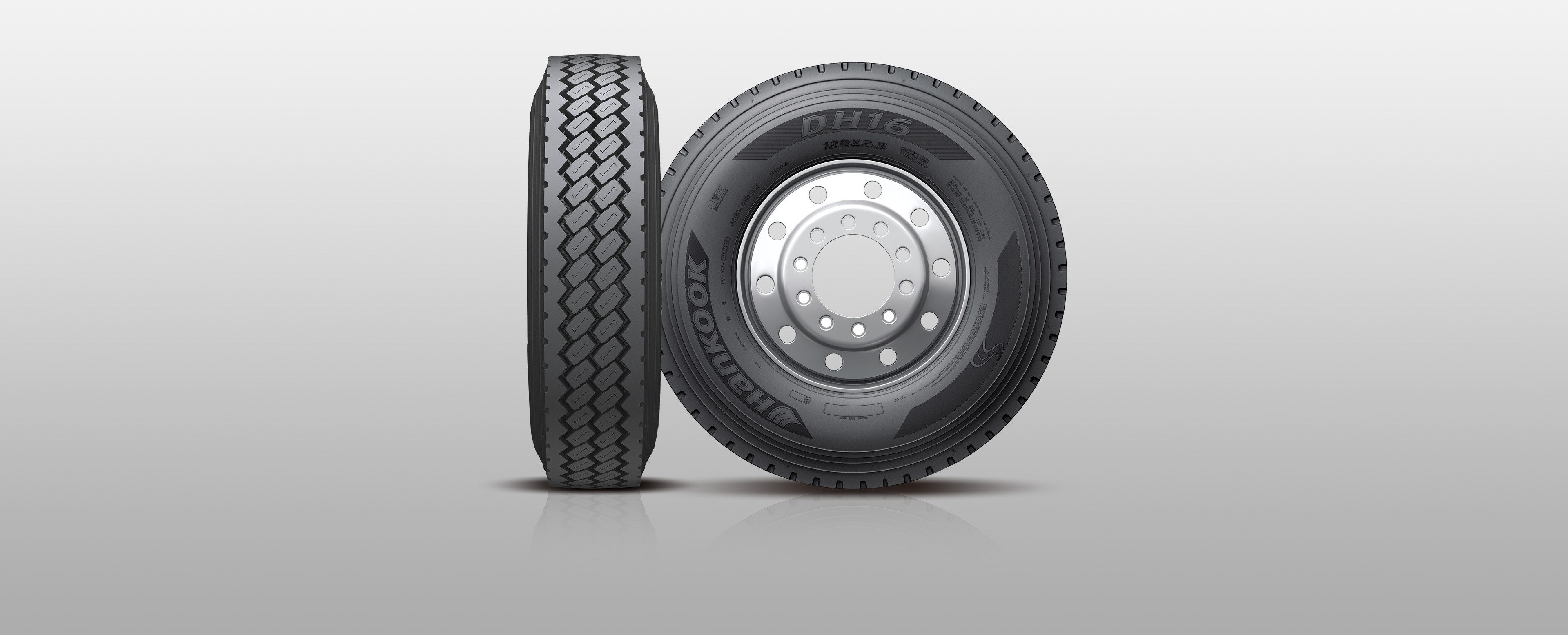

Drive axle radial tyre for regional haul
DH16
Drive axle radial tyre for regional haul
M+S
3PMSF
Application
-
Regional Haul
Bus
Recommended
Premium drive axle coach tyre with high driving comfort
.jpg)

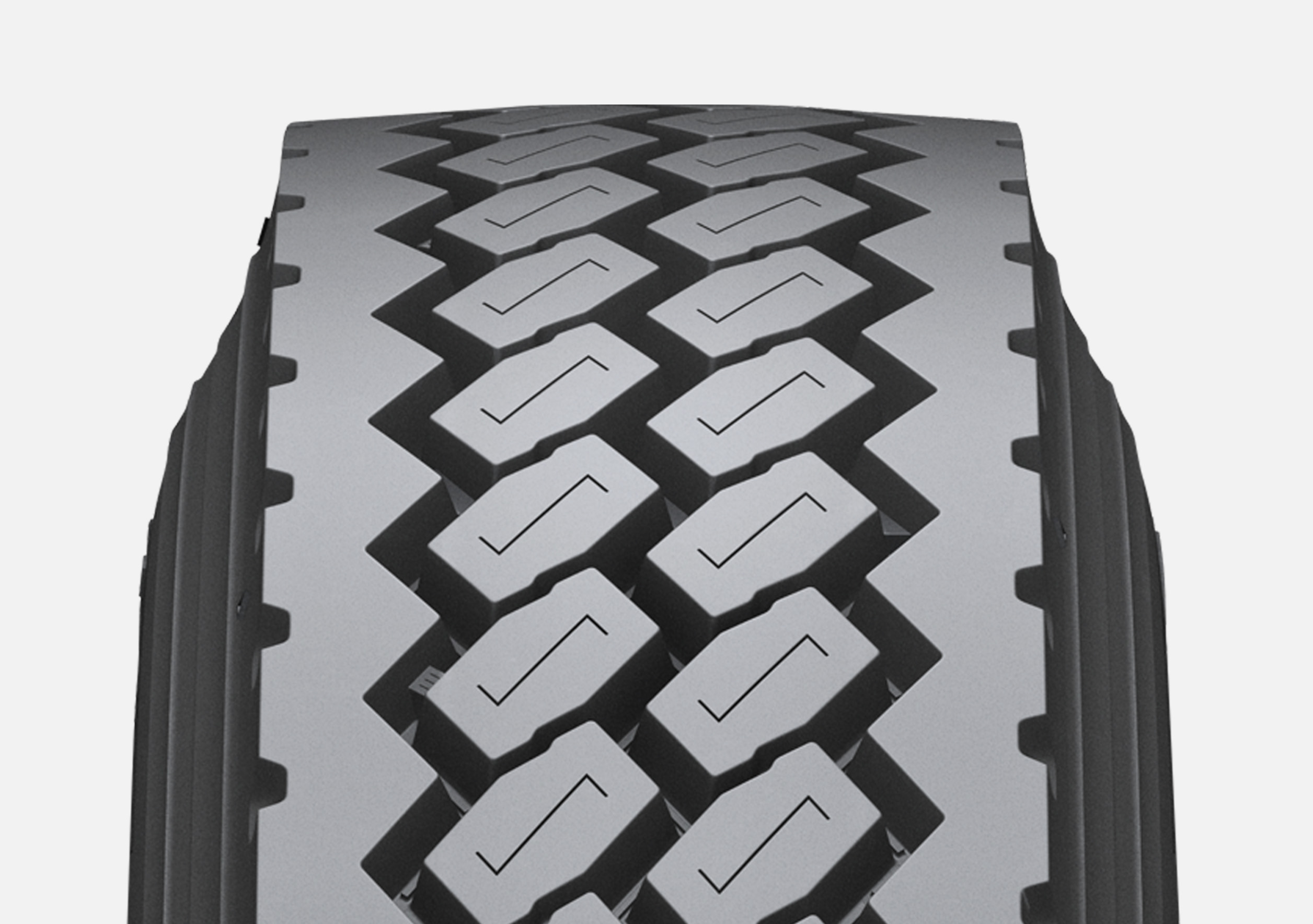

Pattern Design
Regional drive position tyre for exceptional traction and
mileage performance
Deeper tread depth
Deeper tread depth helps
provide long original tread life with
excellent retreadability.
.jpg)

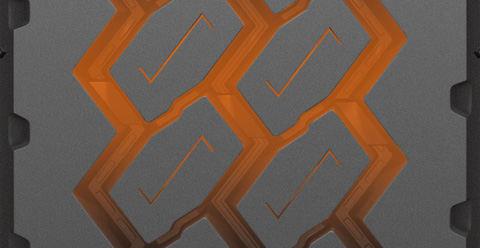

Enlarged hexagon block
The enlarged hexagon block
with rounded block edge reduces
irregular wear by evenly distributing
the load across the surface area.
.jpg)
.jpg)
Pattern Design
Regional drive position tire for exceptional traction and
mileage performance

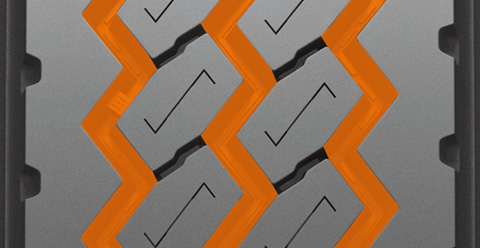

Zigzag Groove
Improves traction and braking
performance by expanding the
point of intersection through
aggressive 3 zig-zag main grooves.
1.jpg)

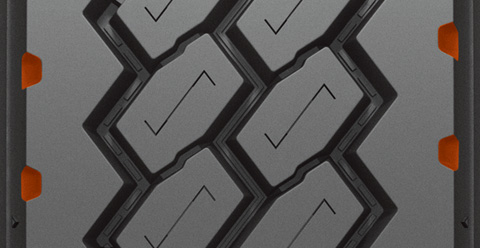

Shoulder lug
Unique shoulder lug design
protects against cracking from
external shocks.
1.jpg)
1.jpg)
-

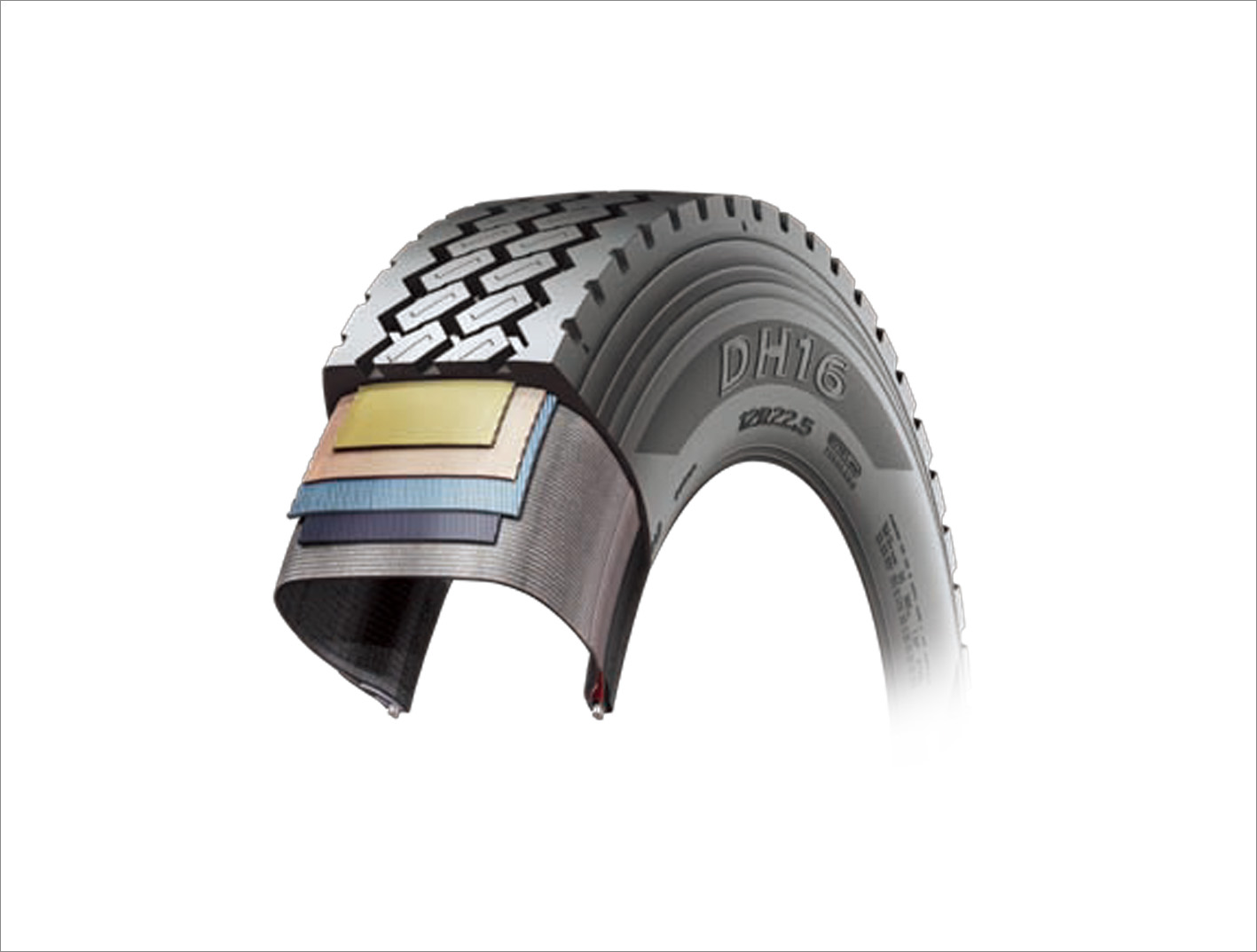

Tyre Structure
.jpg)
-

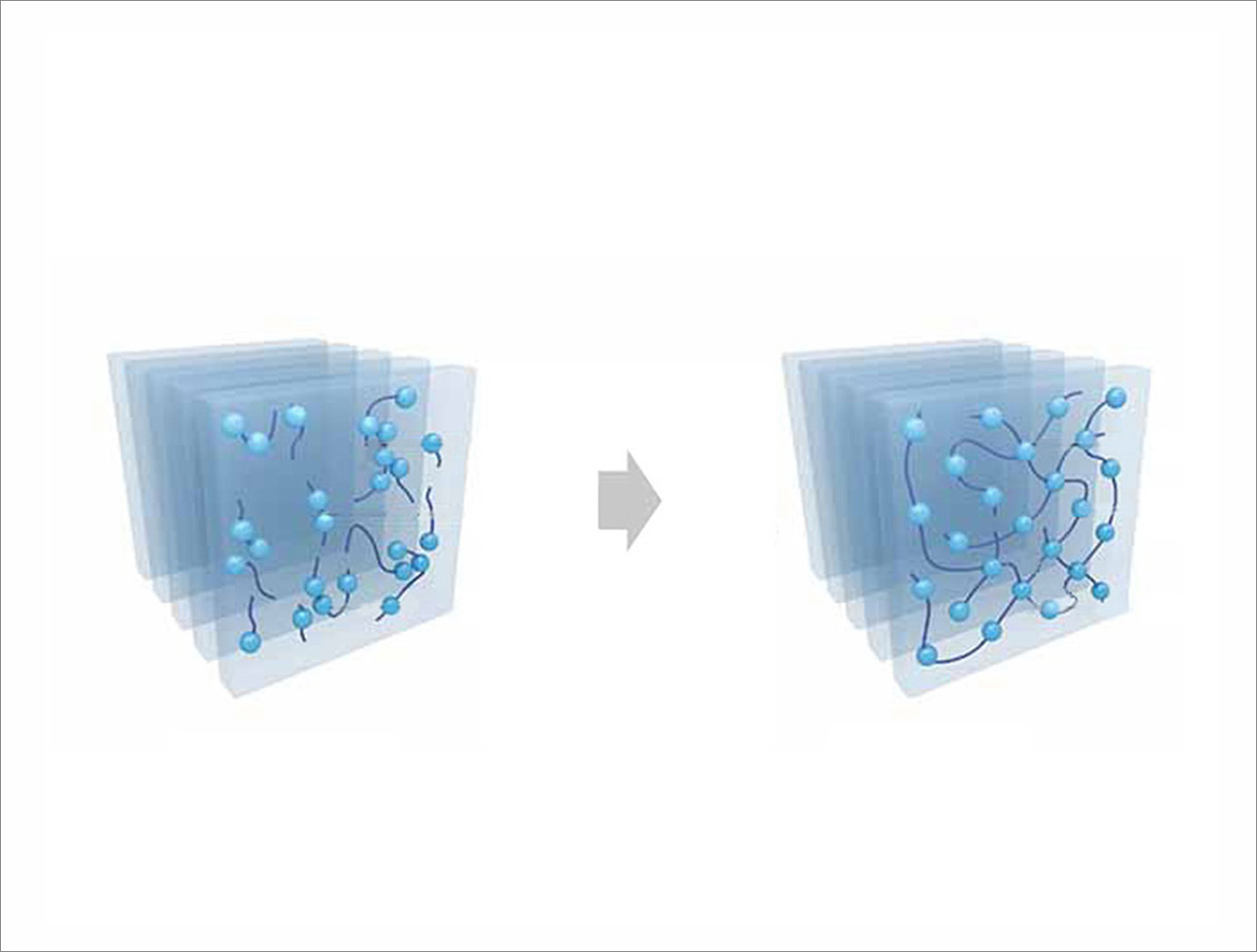

Innovation Mixing System (IMS)
Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
.jpg)
Innovative Mixing System (IMS) minimises the breakdown and oxidation of polymer chains and has a higher dispersion degree of carbon black. The effects of IMS help to strengthen the bonding force between the carbon black and rubber to ensure longer mileage and to lower the heat generation of compounds for improved fuel efficiency.
-

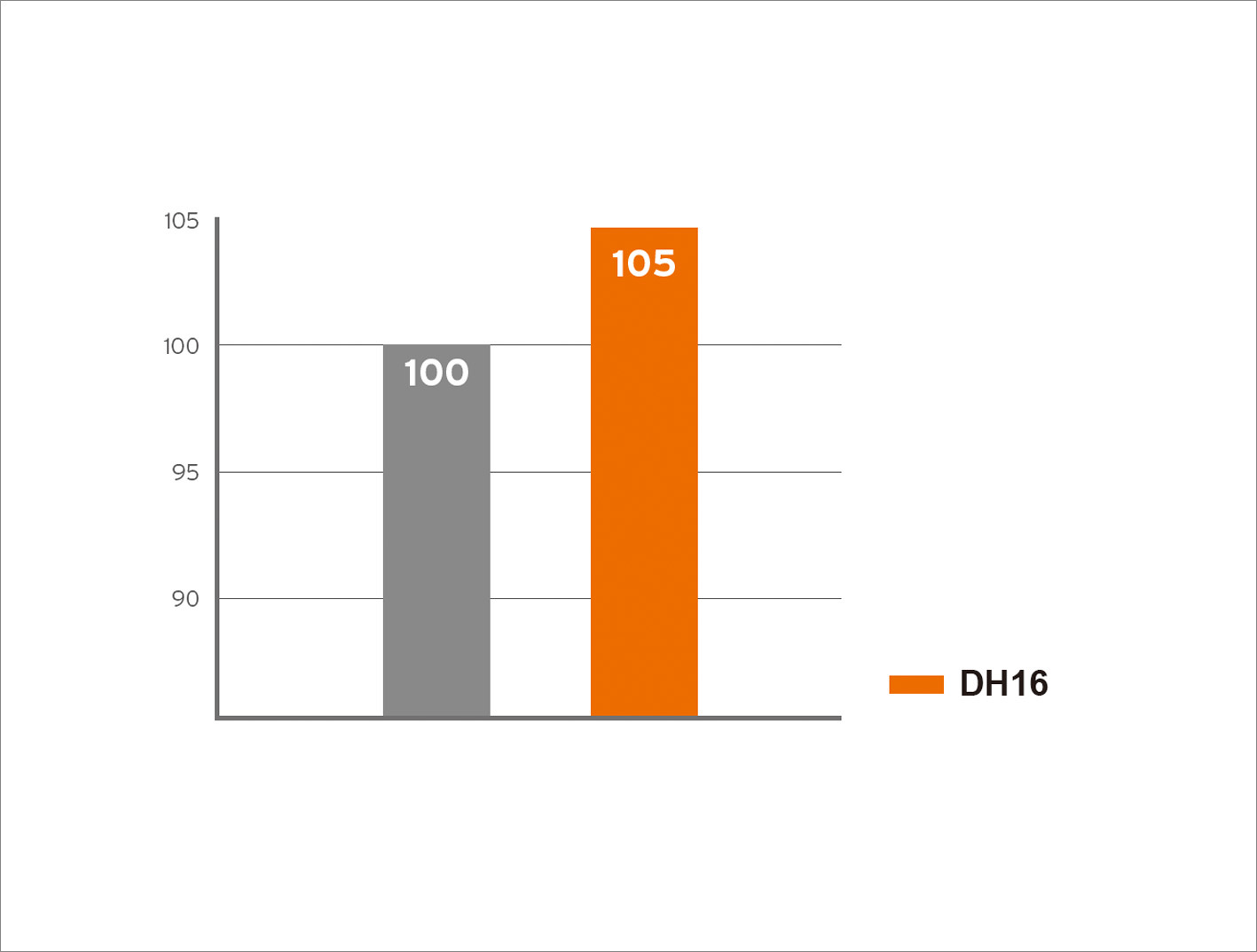

Test Result
DH16 shows longer mileage(better wear resistance).
.jpg)
DH16 shows longer mileage(better wear resistance).
-
Spec
- 22.5”
-
11R22.5
- Fuel Efficiency D
- Wet Grip C
- External Rolling Noise 70
- Tube Type / Tubeless L
- Measuring Rim 8.25X22.5
- Load Index 148/145M
- Section Width(mm) 284
- Tread Width(mm) 216
- Tread Depth(mm) 20.0
- Static Loaded Radius(mm) 496
- Overall Diameter(mm) 1065
- M+S Y
- 3PMSF Y
- Origin Korea
-
11R22.5
- Fuel Efficiency D
- Wet Grip C
- External Rolling Noise 70
- Tube Type / Tubeless L
- Measuring Rim 8.25X22.5
- Load Index 148/145M
- Section Width(mm) 284
- Tread Width(mm) 216
- Tread Depth(mm) 20.0
- Static Loaded Radius(mm) 496
- Overall Diameter(mm) 1066
- M+S Y
- 3PMSF Y
- Origin China
-
12R22.5
- Fuel Efficiency D
- Wet Grip C
- External Rolling Noise 71
- Tube Type / Tubeless L
- Measuring Rim 9.00 X 22.5
- Load Index 152/148L
- Section Width(mm) 305
- Tread Width(mm) 220
- Tread Depth(mm) 21.2
- Static Loaded Radius(mm) 511
- Overall Diameter(mm) 1096
- M+S Y
- 3PMSF Y
- Origin Korea
-
295/80R22.5
- Fuel Efficiency D
- Wet Grip B
- External Rolling Noise 70
- Tube Type / Tubeless L
- Measuring Rim 9.00X22.5
- Load Index 152/148M
- Section Width(mm) 305
- Tread Width(mm) 240
- Tread Depth(mm) 21.4
- Static Loaded Radius(mm) 497
- Overall Diameter(mm) 1067
- M+S Y
- 3PMSF Y
- Origin China
EU Tyre Label
Download your EU Tyre label below.
