Tough in all terrains
.jpg)

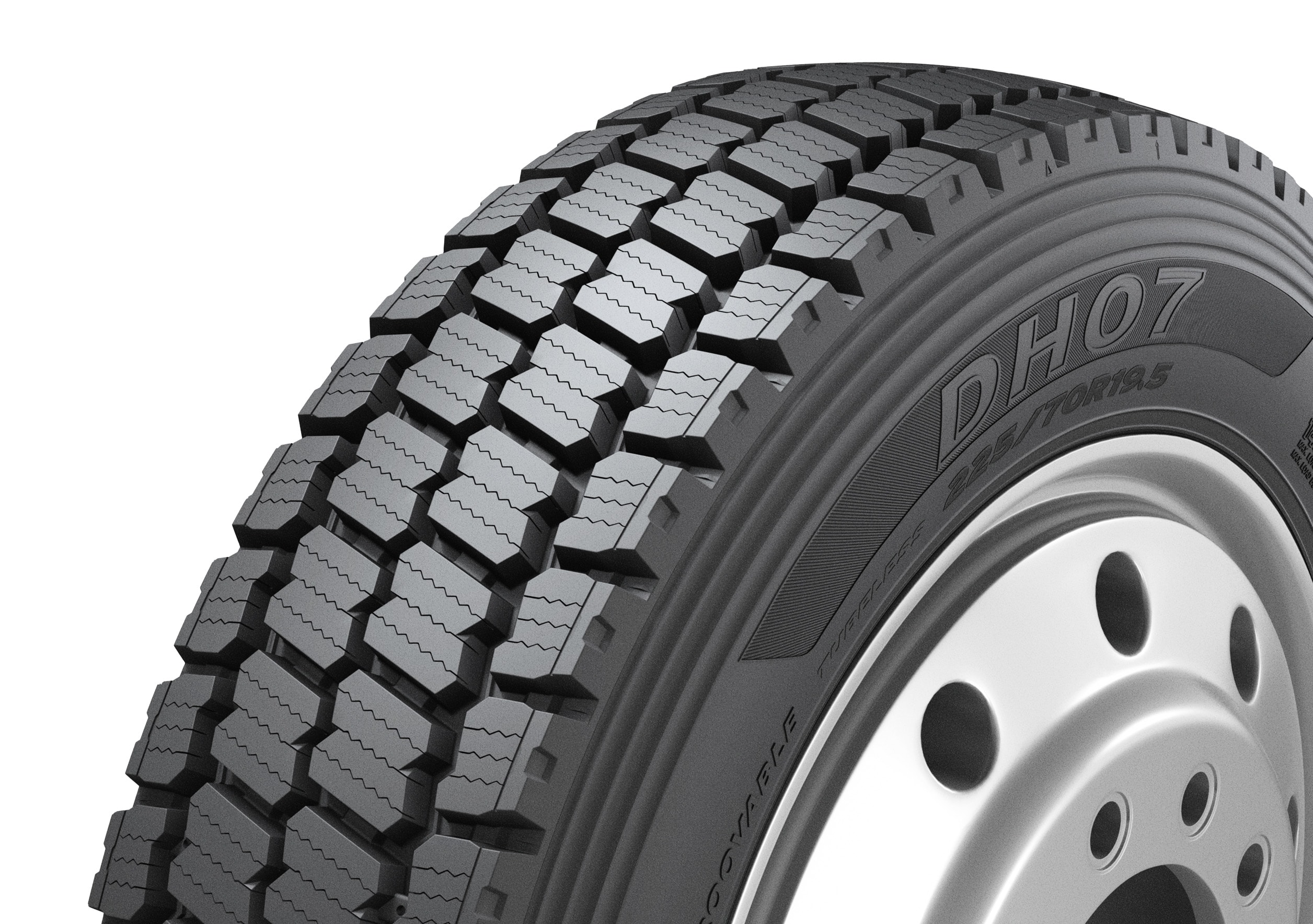

DH07
Optimized design for regional haul pick-up & delivery drive position
M+S
Application
-
Regional Haul
Truck
Recommended
Optimized design for regional haul pick-up & delivery drive position
.jpg)
Pattern design
Wider 3 channel zigzag groove
Wider grooves prevent stone drilling & the tread design provides self cleaning.
.jpg)
Stone ejector
Stone ejector technology prevents stone drilling and tire tearing.
.jpg)
.jpg)
.jpg)
Pattern design
Optimized design
.jpg)
Optimized shoulder design
Unique shoulder block & lug design protects against cracking from external shocks.
.jpg)
Multiple 3-Dimensional Sipe design
Provides longer mileage and maximum traction.
-
Multi 3-Dimensional Sipe Technology
Provide outstanding traction performance with binding forces between blocks which guarantees long mileage and fuel efficiency
.jpg)
Provide outstanding traction performance with binding forces between blocks which guarantees long mileage and fuel efficiency
Test Result
.jpg)
.jpg)
-
Spec
- 19.5”
-
225/70R19.5
- Material Code 3001929
- TT/TL L
- Ply Rating 14
- Measuring Rim 6.75x19.5
- Section Width(inch) 8.9
- Tread Width(inch) 7.2
- Tread Depth(32nds) 18
- Static Loaded Radius(inch) 15.1
- Overall Diameter(inch) 32.4
- Tire Weight(lbs.) 65
- M+S Y
- 3PMSF N
- Max Speed (mph) 87
- Origin Korea
-
245/70R19.5
- Material Code 3002314
- TT/TL L
- Ply Rating 16
- Measuring Rim 7.5X19.5
- Section Width(inch) 9.8
- Tread Width(inch) 8.1
- Tread Depth(32nds) 19
- Static Loaded Radius(inch) 15.6
- Overall Diameter(inch) 33.4
- Tire Weight(lbs.) 74
- M+S Y
- 3PMSF N
- Max Speed (mph) 81
- Origin Korea
-
265/70R19.5
- Material Code 3002313
- TT/TL L
- Ply Rating 14
- Measuring Rim 7.5x19.5
- Section Width(inch) 10.2
- Tread Width(inch) 8.7
- Tread Depth(32nds) 20
- Static Loaded Radius(inch) 16.0
- Overall Diameter(inch) 34.5
- Tire Weight(lbs.) 86
- M+S Y
- 3PMSF N
- Max Speed (mph) 81
- Origin Korea
- OEM Ford
