Tough in all terrains
.jpg)

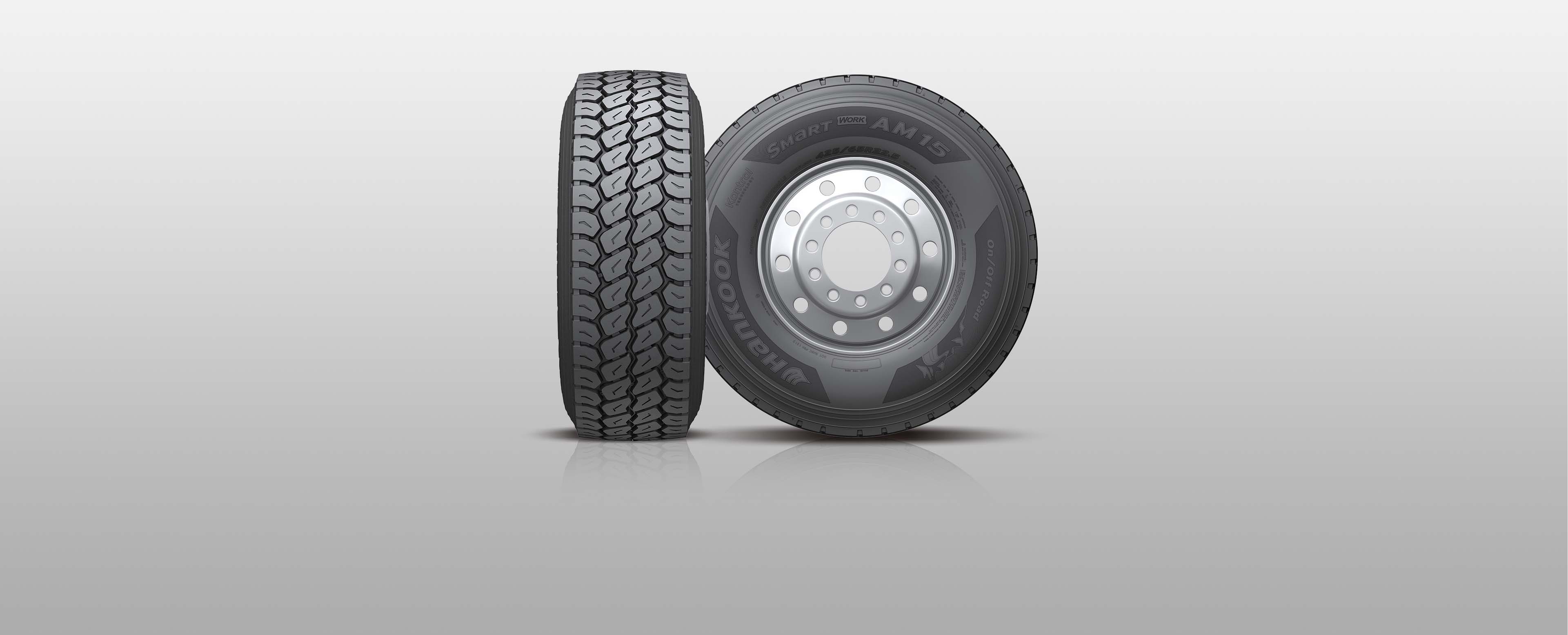

Smart Work AM15
On and off road all position tires, maximised for longer mileage
M+S
3PMSF
Application
-
On & Off Road
Tractor/Trailer, Dump, Truck
Recommended
/dp/steer(all)-dump-1.svg){kind=icon}
/dp/steer(all)-dump-2.svg){kind=icon}
/tr/steer(all)-truck-1.svg){kind=icon}
/tt/steer(all)-tractor-trailer-1.svg){kind=icon}
/tt/steer(all)-tractor-trailer-2.svg){kind=icon}
On and off road all position tires, maximized for longer mileage
.jpg)
.jpg)
Design features
Extra-wide tread blocks and deep grooves
Extra-wide tread blocks and deep grooves ensure ultra-high mileage.
.jpg)
Optimized tie-bar
Open shoulder blocks with optimized tie-bars prevent irregular wear and provide excellent traction performance for off-road conditions.
.jpg)
Extra-wide grooves
Extra-wide grooves are designed for excellent stone rejection and improved traction.
.jpg)
-

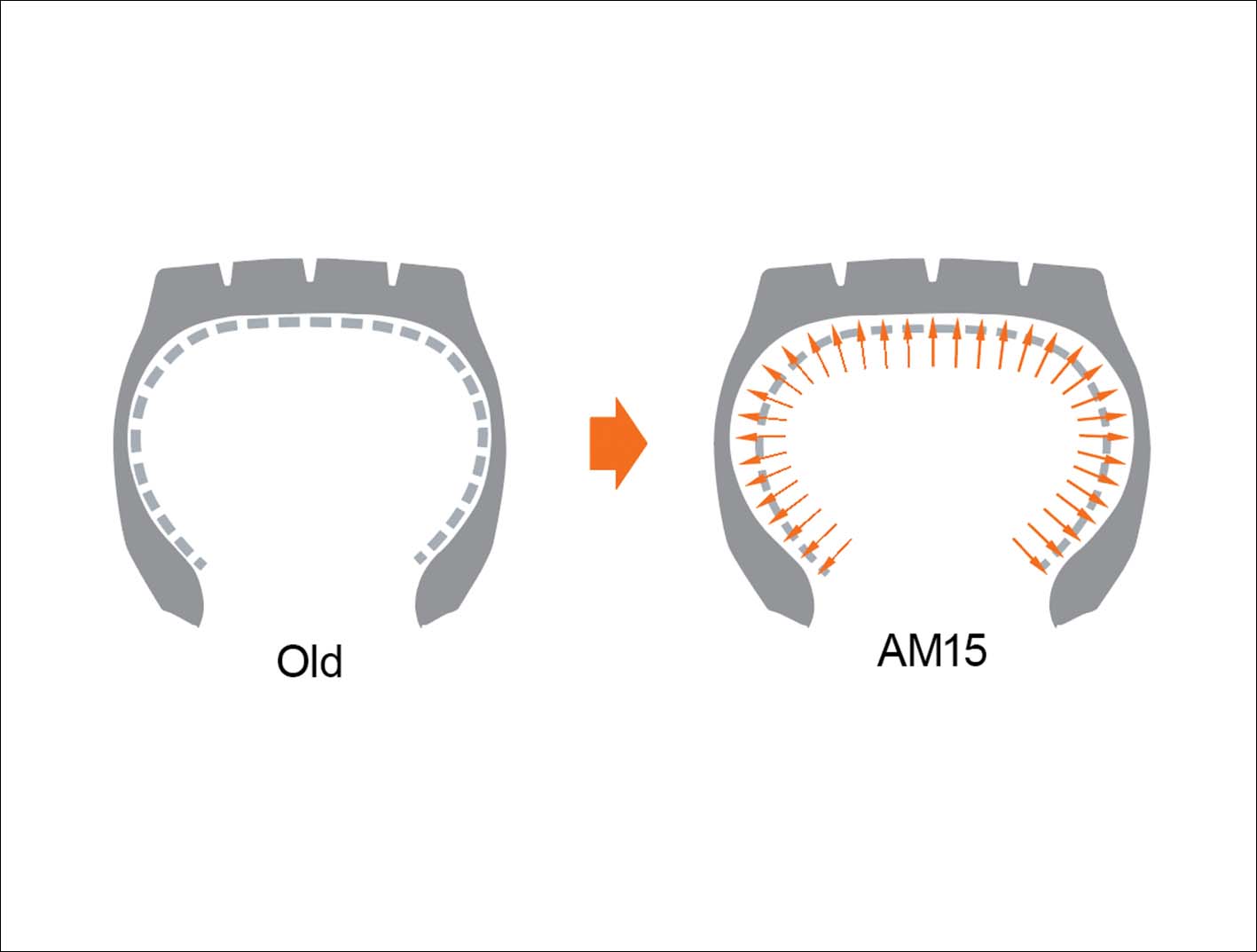

Increased
inner volume of tiresOverall the inner volume is increased by 6% compared with the AM02. There is improved durability performance through the efficient management of tire heat emissions.
.jpg)
Overall the inner volume is increased by 6% compared with the AM02. There is improved durability performance through the efficient management of tire heat emissions.
-

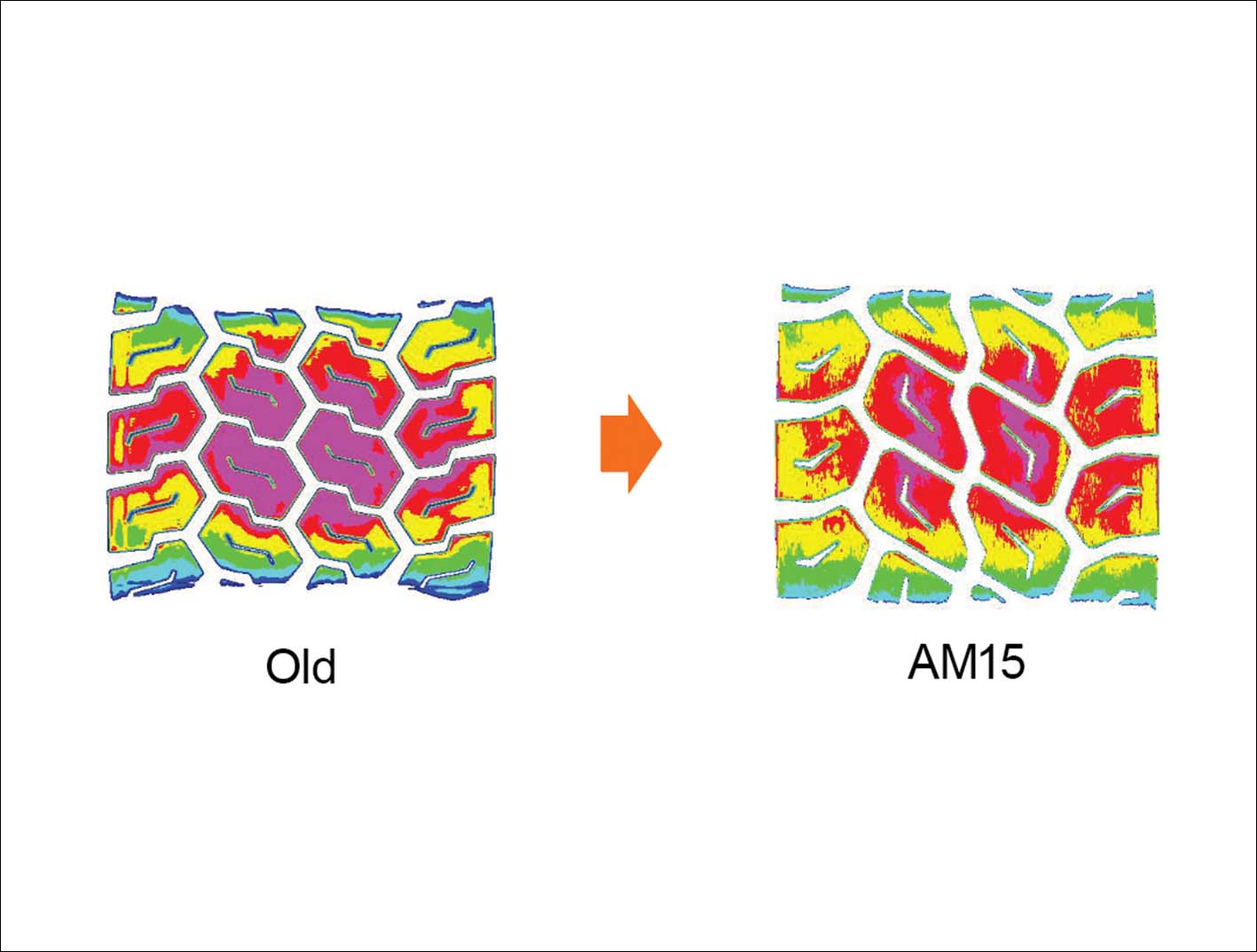

Stabilized footprint
Stabilized flat footprint reduces irregular wear.
.jpg)
Stabilized flat footprint reduces irregular wear.
-
Spec
- 22.5”
-
425/65R22.5
- Material Code 3001934
- TT/TL L
- Ply Rating 20
- Measuring Rim 12.25X22.5
- Section Width(inch) 16.3
- Tread Width(inch) 12.8
- Tread Depth(32nds) 23
- Static Loaded Radius(inch) 20.6
- Overall Diameter(inch) 44.7
- Tire Weight(lbs.) 200
- M+S Y
- 3PMSF Y
- Max Speed (mph) 65
- Origin Korea
-
445/65R22.5
- Material Code 3002160
- TT/TL L
- Ply Rating 20
- Measuring Rim 14.0X22.5
- Section Width(inch) 17.5
- Tread Width(inch) 13.9
- Tread Depth(32nds) 24
- Static Loaded Radius(inch) 21.2
- Overall Diameter(inch) 45.9
- Tire Weight(lbs.) 216
- M+S Y
- 3PMSF Y
- Max Speed (mph) 68
- Origin Korea
- 22.5”
-
385/65R22.5
- Material Code 3002813
- TT/TL L
- Ply Rating 18
- Measuring Rim 11.75×22.5
- Section Width(inch) 14.9
- Tread Width(inch) 12.0
- Tread Depth(32nds) 23
- Static Loaded Radius(inch) 19.6
- Overall Diameter(inch) 42.5
- Tire Weight(lbs.) 166
- M+S Y
- 3PMSF Y
- Max Speed (mph) 75
- Origin China
